(T1130-11-61) A Computational Semi-mechanistic Pharmacology Model of ATG101, a PD-L1/4-1BB Bispecific Antibody for Treatment of Solid Tumors

Purpose: Bispecific T-cell engagers have shown significant promise as therapies for various cancers¹. ATG101 is a bispecific antibody that crosslinks tumor-expressed PD-L1 to T-cell-expressed 4-1BB, thereby selectively activating tumor-infiltrating T-cells while inhibiting immune checkpoints. The pharmacologically active complex, which is a trimer consisting of drug bound to both PD-L1 and 4-1BB and is difficult to measure directly, was predicted using a semi-mechanistic pharmacological model by integrating and calibrating against data from multiple in vitro assays. The model was then used to predict both (1) the number of PD-L1:ATG101:4-1BB trimers formed per T-cell and (2) PD-L1 occupancy, allowing it to quantify 4-1BB-driven activation as well as checkpoint blockade along the PD-1:PD-L1 axis in vivo

Methods: Model structure: A single-compartment in vitro model and a three-compartment in vivo model were built. The bispecific molecules could first bind to either 4-1BB or PD-L1 and then crosslink the other receptor to form a trimer. Parameter estimation: The model’s binding parameters were calibrated to experimental in vitro data. Two crosslinking rates were carried forward to model predictions to capture uncertainty in its value. Other model parameters were estimated from the literature. Model validation: The model was validated by comparing model simulations to data from two in vitro assays. In vivo predictions: Simulations of ATG101 in human solid tumor patients were performed using the calibrated binding parameters and standard antibody pharmacokinetic parameters. Simulations varied the crosslinking rate and number of PD-L1 receptors per tumor cell to capture important sources of uncertainty and variability. Single IV bolus doses ranging from 0.001 to 30 mg/kg were simulated.

Results: The model predicts trimer formation exhibits a non-monotonic dose response and that doses between 0.3 and 3 mg/kg maximize trimer formation. Simulations predict that ATG101 can sustain greater than 80% and 70% trimer formation and 90% and 95% PD-L1 occupancy in the tumor at a dose of 2 mg/kg and 3 mg/kg, respectively, once every three weeks (Figure 3).

Conclusion: For bispecific antibodies acting via both receptor crosslinking and checkpoint blockade, reductions in trimer at large doses may complicate dose selection. By predicting PD-L1 RO and trimer formation, the model provides a rational basis for clinical dose selection. ATG101 is predicted to be capable of maintaining near-maximal trimer levels across a range of concentrations, allowing it to be dosed at levels high enough to attain greater than 90% PD-L1 receptor occupancy.

References: 1) Huehls, A.M., Coupet, T.A. and Sentman, C.L. (2015), Bispecific T-cell engagers for cancer immunotherapy. Immunol Cell Biol, 93: 290-296

Acknowledgements:Hui Yuwen, Bing Hou, and Dirk Hönemann are employees of Antengene Corporation. David Flowers, Marc Presler, and Kas Subramanian are employees of Applied BioMath, LLC, Concord, MA. Applied BioMath provided modeling and simulation consulting services to Antengene Corporation, Shanghai.

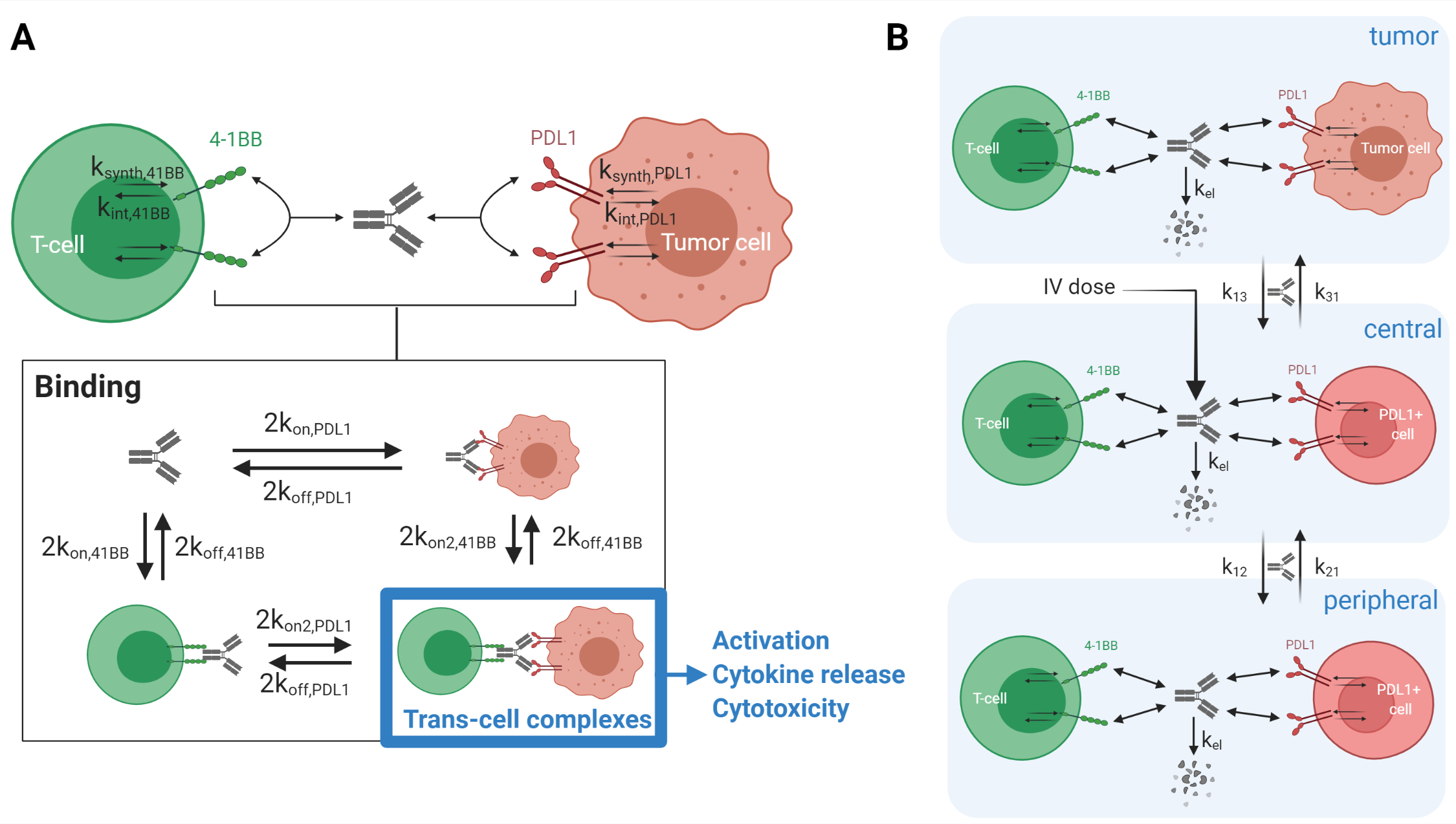

Figure 1: Model structure diagram for (A) the one-compartment in vitro model and (B) the three-compartment in vivo model

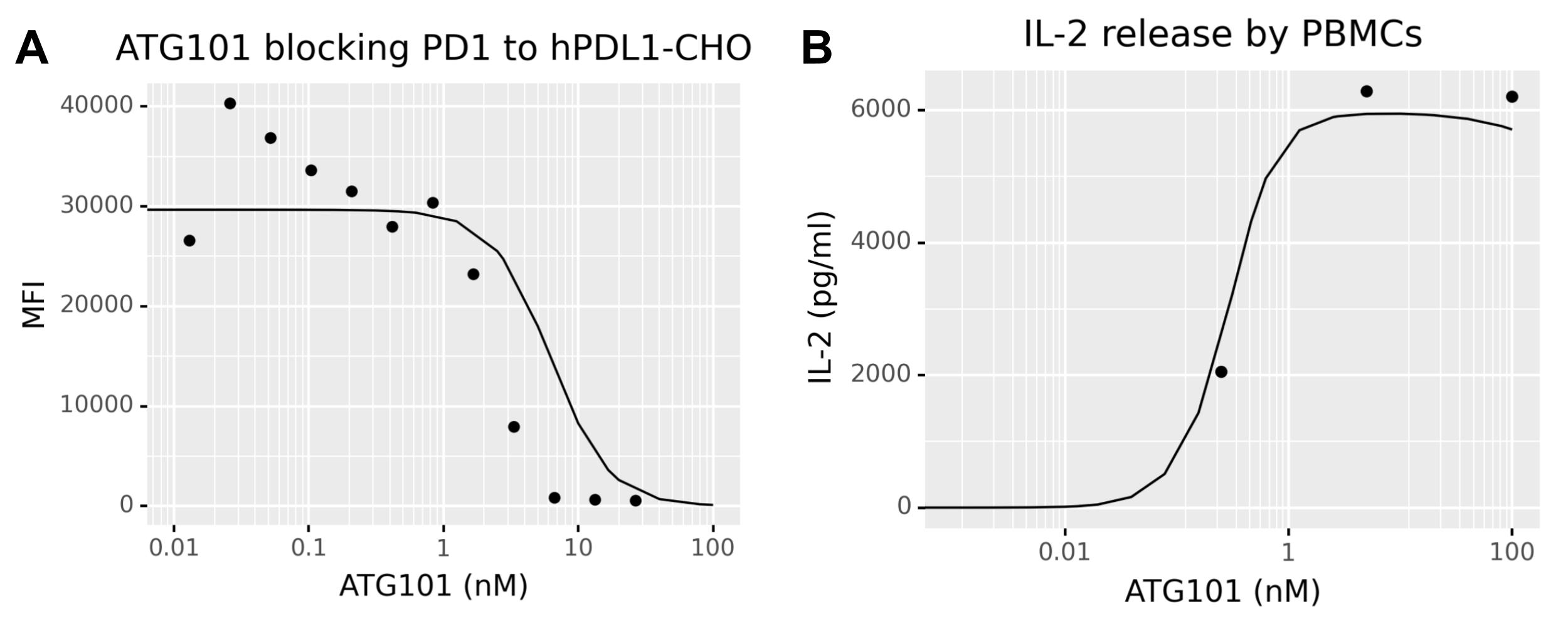

Figure 2: Comparison of in vitro model simulations to data used for model validation. Lines show simulations, and points show data. (A) PD-1:PD-L1 blockade assay. Reduction in PD-1 binding to PD-L1 at various concentrations of ATG101 was measured on hPD-L1-expressing CHO cells via flow cytometry. (B) IL-2 release assay. PBMCs were activated with staphylococcal enterotoxin A and incubated with ATG101.

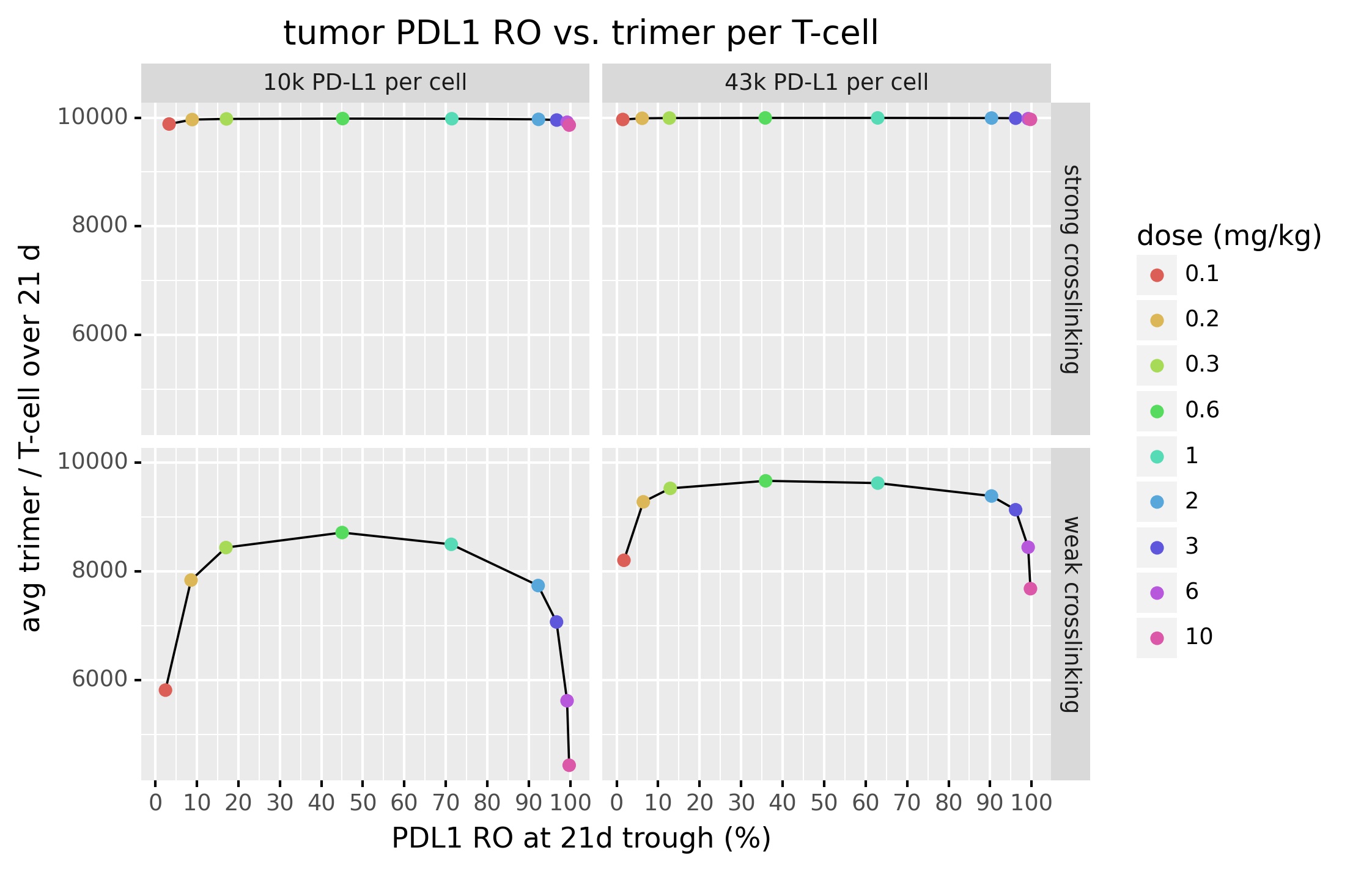

Figure 3: Trimer formation versus PD-L1 RO at day 21 following a single dose, predicted for different PD-L1 expression levels and crosslinking strengths. Each point represents a dose, with the color indicating the dose level. Panels show predictions for different numbers of PD-L1 receptors per tumor cell (columns) and crosslinking strengths (rows). The x axis indicates the PD-L1 RO at day 21, and the y axis indicates the average number of trimers per T-cell over the 21-day interval following the dose.
